Touch Display Products
Glove-friendly, outdoor-readable, industrial-grade touch solutions meet the demands of harsh environments.
Touch interfaces have become standard equipment for industrial machinery, medical instruments, and rugged devices, but consumer-grade touch technology often shows significant applicability gaps under actual industrial conditions. These scenarios—operators wearing gloves, equipment exposed to rain or dust, screens difficult to read under intense sunlight—demand much higher sensitivity, interference resistance, and brightness from touch systems than consumer electronics can offer.
PCAP Projected Capacitive Touch Display Solutions
Atemitech provides professional touch display solutions with rich experience in collaboration with internationally renowned manufacturers. Their products and services include PCAP projected capacitive touch modules, touch screens, and customized optical bonding services, which can integrate touch modules, controllers, and customer-specified LCD screens according to client needs.
Projected capacitive touch modules are a popular choice for industrial, medical, and commercial applications.
Touch Screen Solutions
Atemitech Technology's touch displays integrate projected capacitive touch modules, touch controllers, LCD panels, and optical bonding technology.
Various Mount Configurations
Offers mounting options for different applications, including open frame, panel mount, and rack mount.
Optical Bonding Technology
Atemitech Technology's advanced optical bonding technology achieves top-notch screen clarity and robustness.
Recommended Products
For common industrial application needs and scenarios, we recommend choosing standard products, so you can enjoy the benefits of immediate ordering and fast delivery.

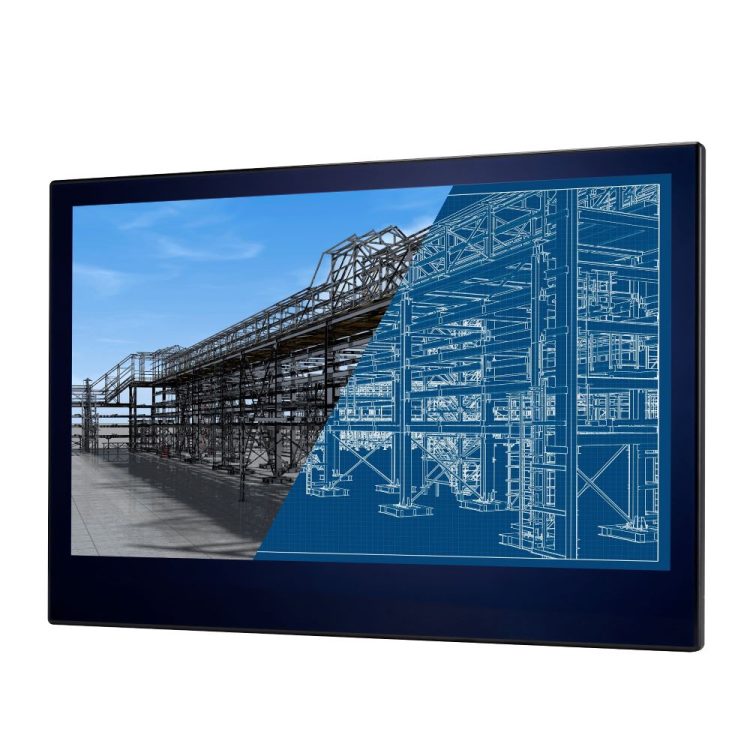

- 17.3-inch industrial-grade IPS panel (customizable in other sizes)
- Resolution: 4K, UHD (3840x2160), 120Hz refresh rate
- Screen brightness 1000 Nits (brightness can be customized up to 2000 Nits)
- Front cover designed to meet IP66 standards
- >7H scratch-resistant screen
- Operating temperature: 0°C~50°C (optional extended range -30°C~85°C)
- Optional glove and rain dual mode operation
- Other optional features: saltwater resistance, operation under ultrasonic gel, anti-reflective, anti-glare, anti-fingerprint, antibacterial, shatterproof, sun radiation proof, EMI shielding, and more
- I/O standard configuration: HDMI, VGA, Displayport, Audio-in, and USB-B ports (optional configurations available)

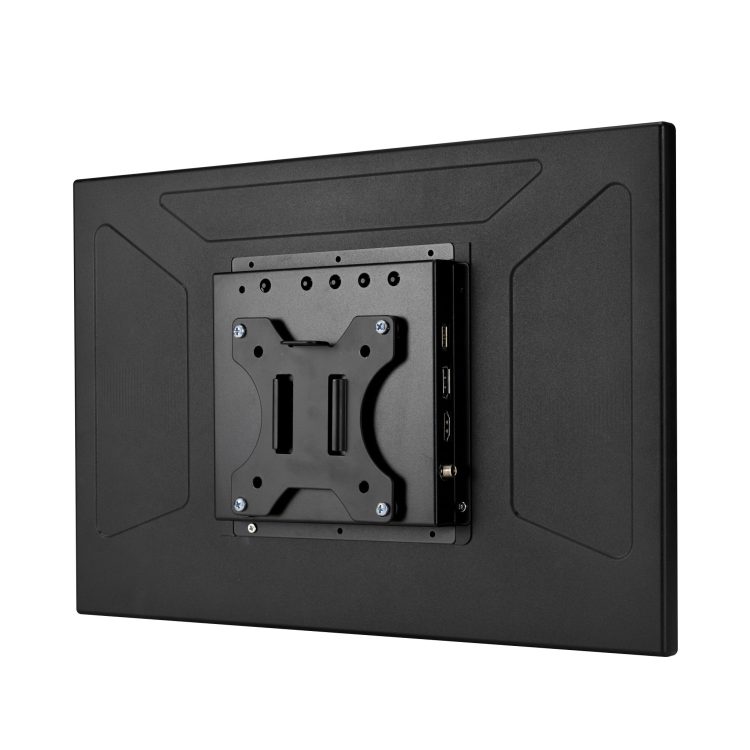

- OSD control panel, rear panel with VESA (100mmX100mm) mountable capability
- Supports various installation options: embedded, wall-mounted, desktop, and stand

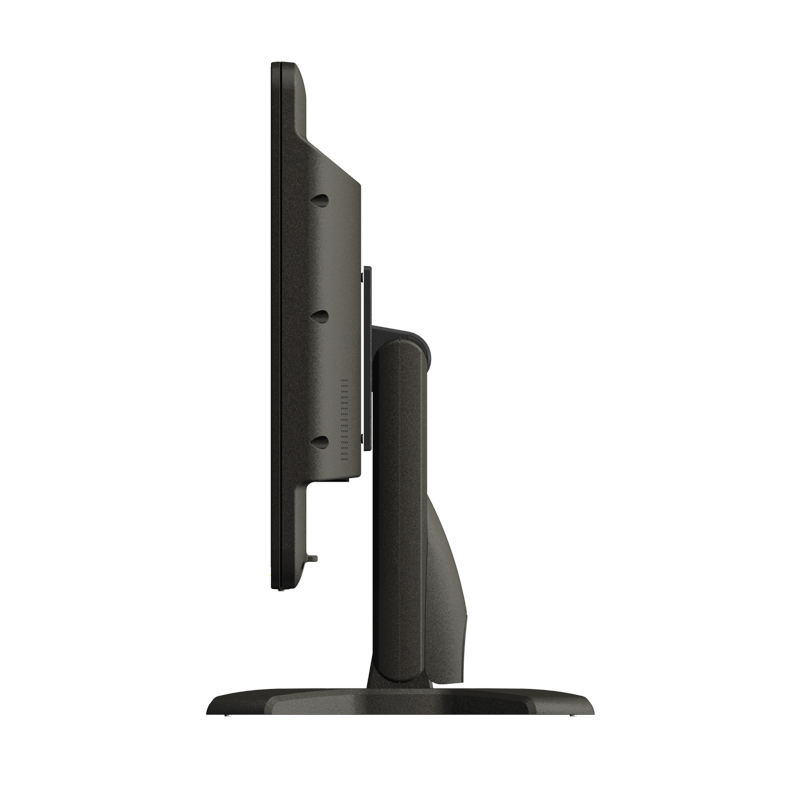

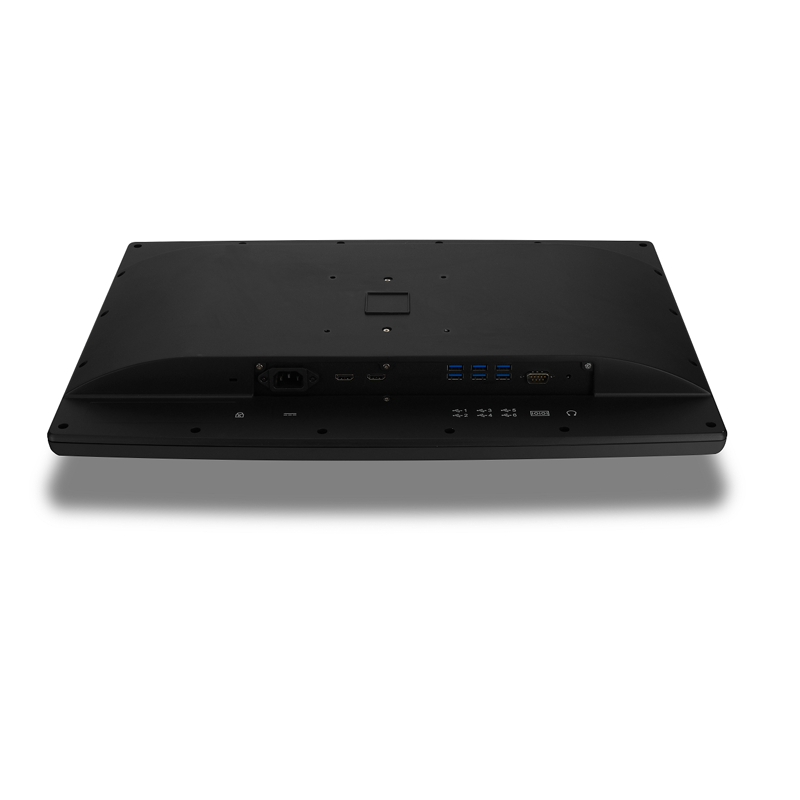

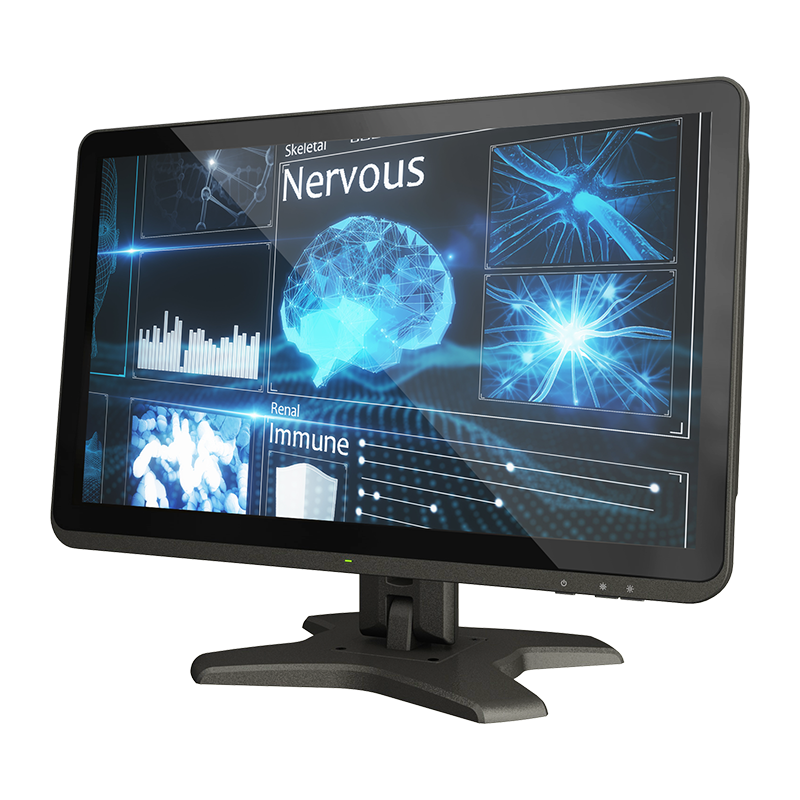

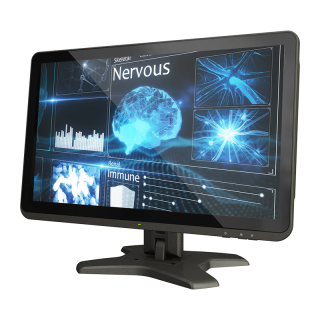

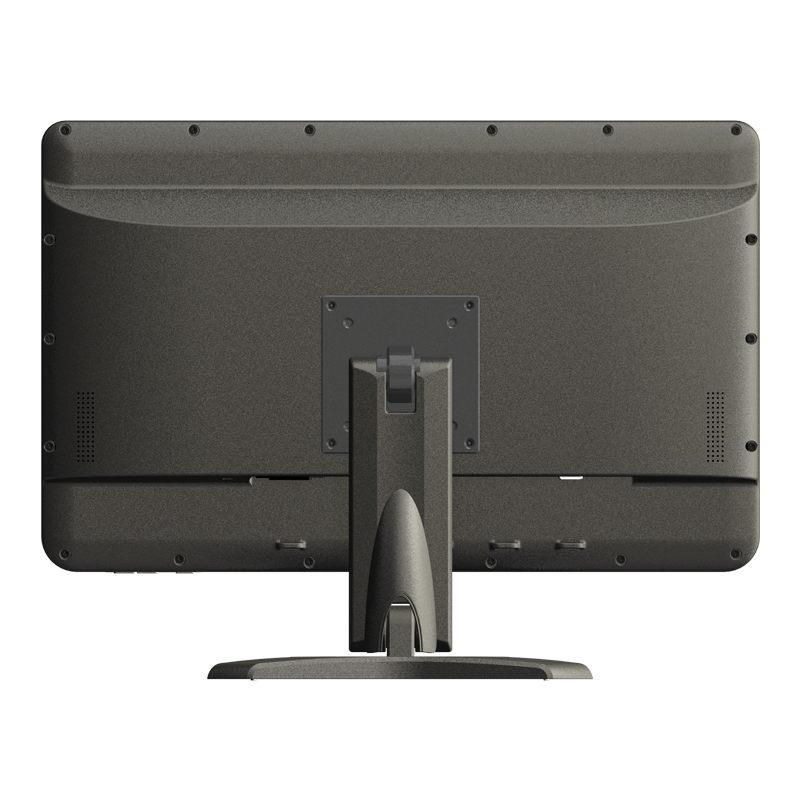

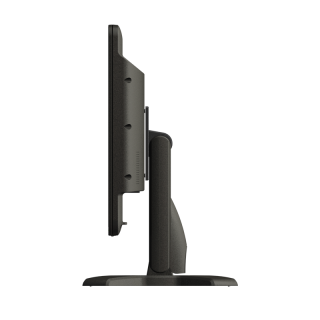

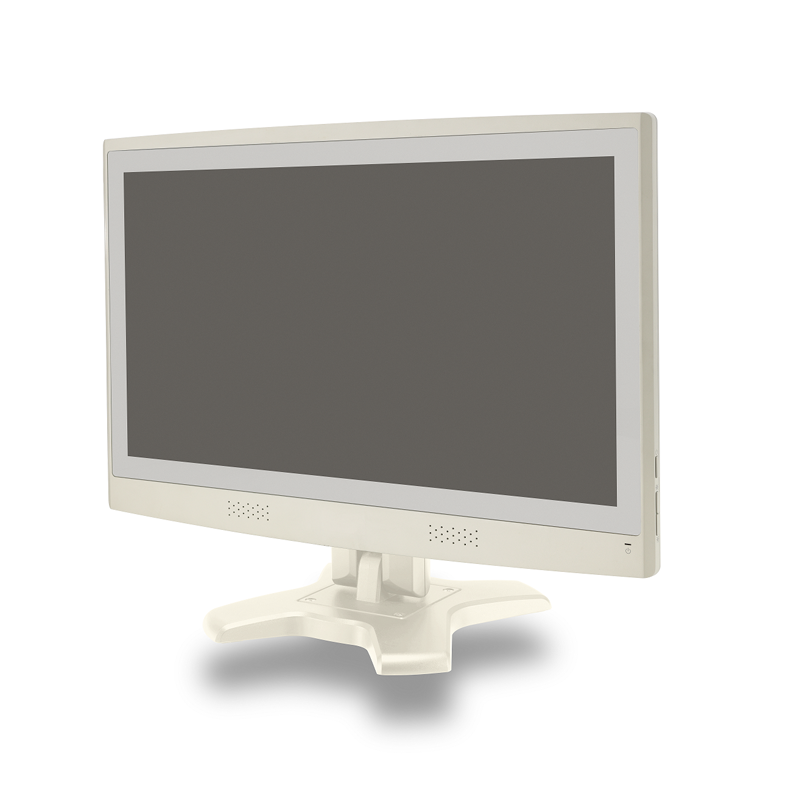

- 15.6-inch industrial-grade IPS panel or 21.5-inch industrial-grade IPS panel
- Resolution: FHD (1920x1080) or UHD (3840x2160)
- The front panel is designed with IP66 compliance.
- No bonding or optional optical bonding available.
- Equipped with explosion-proof, shatterproof, and solar radiation features.
- Electromagnetic interference resistance of 10Vm, radiation resistance of 30Vm, operable with gloves, in water spray, and under ultrasound gel.
- Optional features: anti-reflective, anti-glare, anti-fingerprint, and antibacterial.

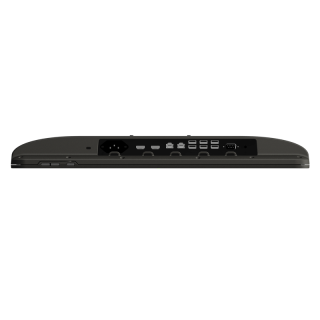

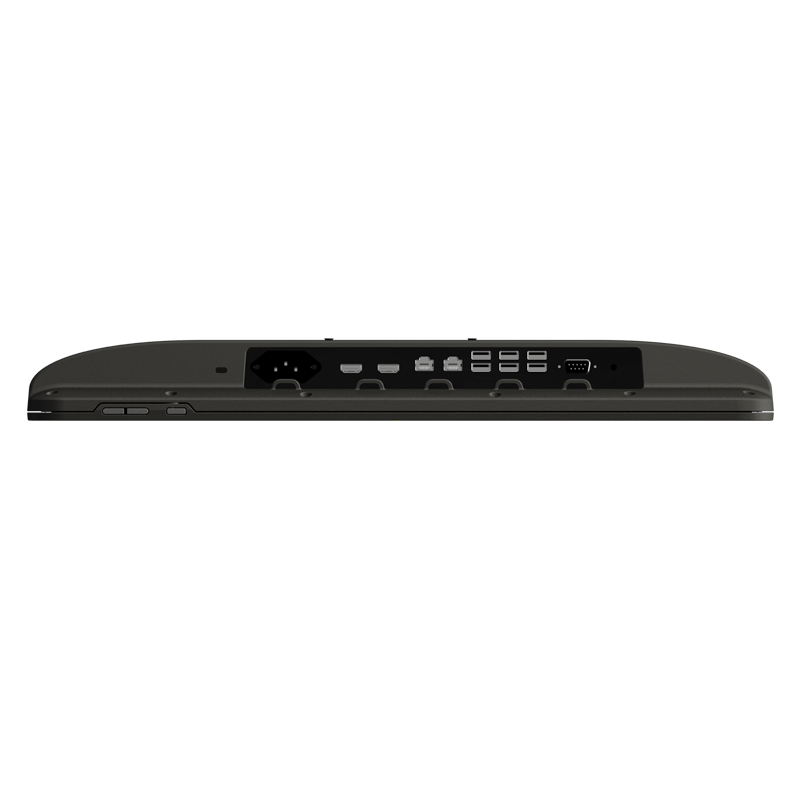

- Standard I/O configuration: DVI, HDMI, VGA, and DP video input interfaces.

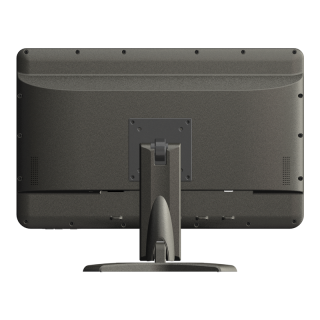

- OSD control panel, back panel with VESA lockable function.
- Supports various mounting options: embedded, wall-mounted, desktop, and stand.
Customized PCAP projected touch solutions based on customer needs, ranging from as small as 5 inches to as large as 55 inches.
Offers industrial-grade waterproof, dustproof, shockproof, and drop-proof capabilities, such as IP65 and IP67 testing standards.
- Open frame architecture monitor
- Panel Mount display
- Rack Mount display
Supports HDMI, DisplayPort, and USB Type-C interfaces.
Customization can be done according to customer requirements by integrating specific LCD panels and advanced technologies to meet their unique user experience, application, and environmental needs.
Atemitech's touch solutions encompass touch sensor selection, optical bonding (LumiBond® 2.0), controller integration, and module packaging, customized to the client's product size, usage environment, and certification needs. Optical bonding technology effectively eliminates air gaps between the display layer and touch layer, enhancing outdoor visibility and structural durability, suitable for devices needing long-term stable operation. Whether it's industrial handheld terminals, medical cart displays, defense vehicle-mounted equipment, or outdoor kiosks, Atemitech provides comprehensive engineering support from solution evaluation and sample development to mass production delivery, assisting clients in obtaining necessary safety certification documents.
