Expansion Dock
As industrial handheld devices, rugged computers, and mobile workstations become increasingly common in field operations, the demand for device connectivity continues to grow. When facing complex requirements such as multi-display output, wired networking, external storage access, and simultaneous charging, these needs often become a bottleneck in on-site deployment. Frequent plugging and unplugging of different cables not only reduces operational efficiency but also accelerates physical wear on interfaces, increasing maintenance costs.
Atemitech expansion docks are designed around a single-cable connection concept. Through one connection, data transmission, video output, and device charging are completed simultaneously. The solution also provides multiple port expansion options, enabling field operators to switch quickly between fixed workstations and mobile deployments without repeatedly managing cables or reconfiguring peripheral devices.
Atemitech expansion docks are designed around a single-cable connection concept. Through one connection, data transmission, video output, and device charging are completed simultaneously. The solution also provides multiple port expansion options, enabling field operators to switch quickly between fixed workstations and mobile deployments without repeatedly managing cables or reconfiguring peripheral devices.
Recommended Products
For common industrial application needs and scenarios, we recommend choosing standard products to benefit from the advantages of immediate ordering and fast shipping.

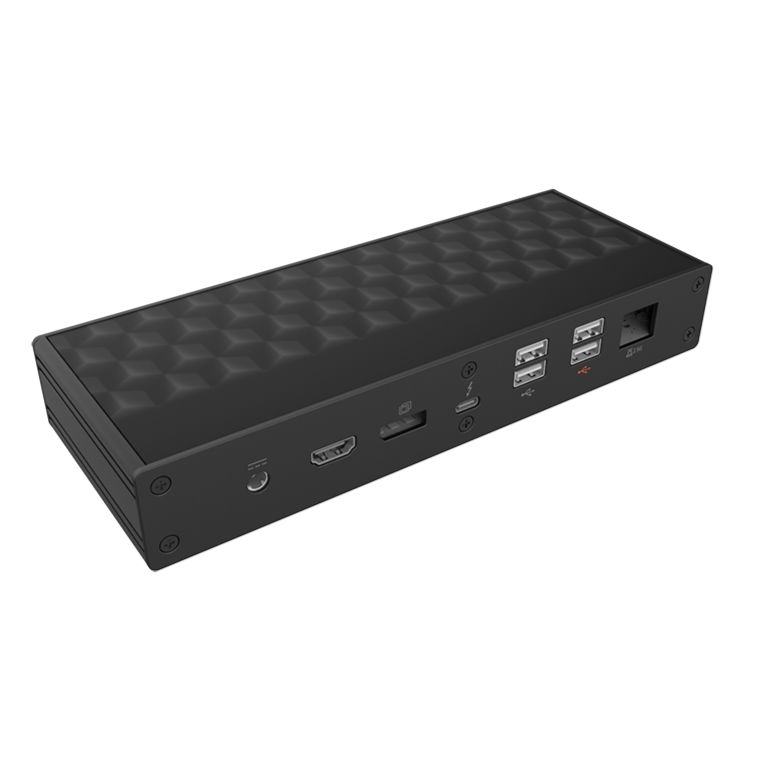

Thunderbolt Expansion Dock DK-12DT
Atemitech's DK-12DT utilizes Intel Thunderbolt technology, compatible with laptops running PC, Mac, or Android operating systems. It's ideal for businesses with a mixed PC environment or shared desktops, as well as mobile professionals with multitasking needs.
- The device connects via USB Type-C, offering fast charging with up to 96W power delivery along with perfect 4K display resolution and high-performance data synchronization speeds.
- You can opt for UHD 4K dual video output or enjoy a single screen 8K ultra-resolution video experience.
- It features 2 USB-C ports and 3 USB-A ports.
- Supports SD 4.0 card reader.
- 3.5mm combo audio input/output.
- Kensington lock slot.
- Slim and portable with dimensions of 220mm length x 84mm width x 35mm height.

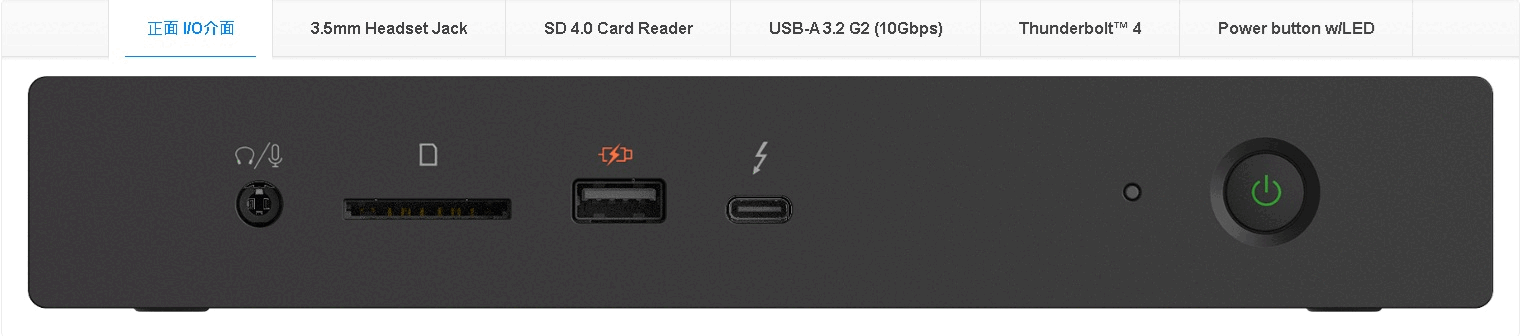

DK-12DT Front I/O Interface

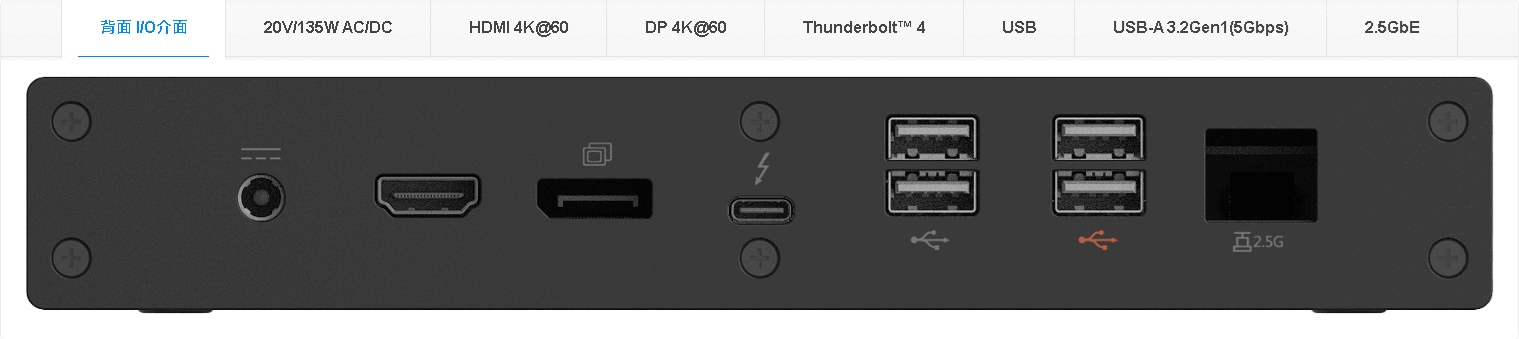

DK-12DT Rear I/O Interface

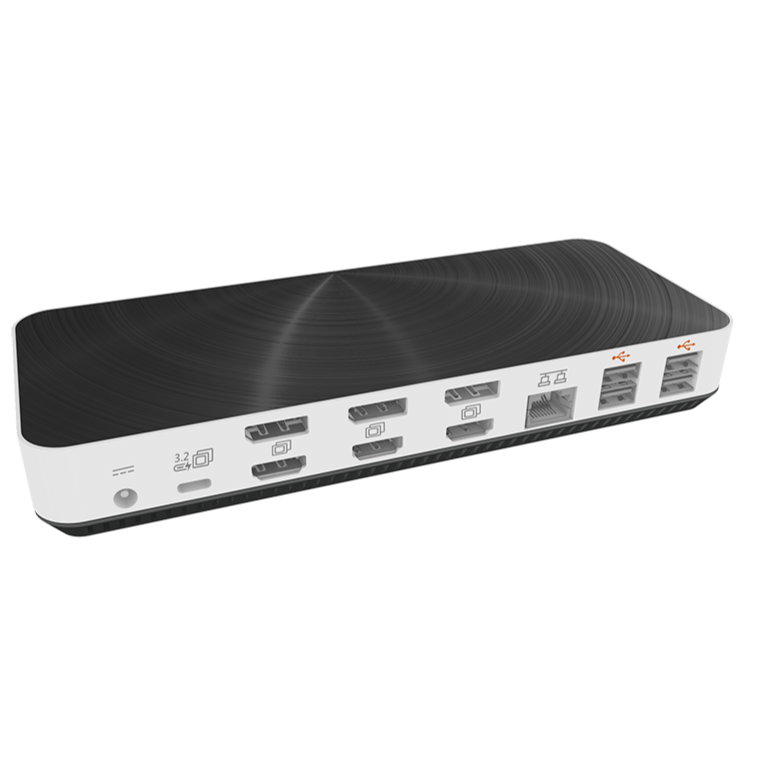

Universal Expansion Dock DK-13CD
The Atemitech DK-13CD from Atemitech is a versatile docking station compatible with any computer brand and operating system that supports DisplayLink technology. It is powerful and designed for corporate clients in office environments blending PC or shared desktops, as well as mobile business professionals with multitasking needs. It can easily connect to monitors, mice, keyboards, and audio devices.
- By utilizing the USB Type-C interface, it outputs fast charging for connected devices with a power supply reaching up to 100W, and delivers perfect 4K display resolution performance with high efficiency and excellent data synchronization transfer speeds.
- You can choose to synchronize three displays or enjoy a dual video output UHD 4K experience.
- It offers 2 USB-C Gen 3.2 ports and 4 USB-A Gen 3.2 ports.
- Supports SD 4.0 card reader and smart card reader.
- 3.5mm combo audio input/output.
- Kensington lock slot.
- Slim and portable with dimensions of 210mm in length, 85mm in width, and 35mm in height. It can be placed horizontally or vertically.

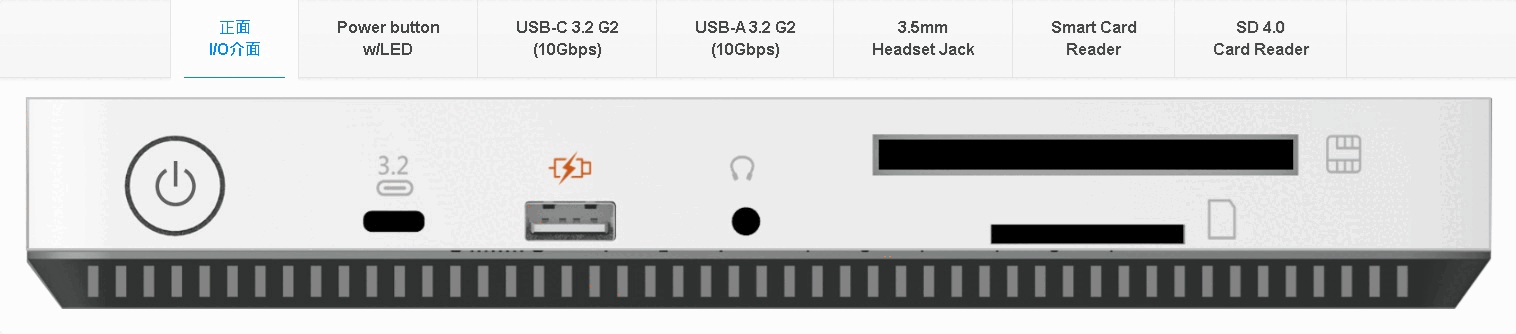

DK-13CD Front I/O Interface.

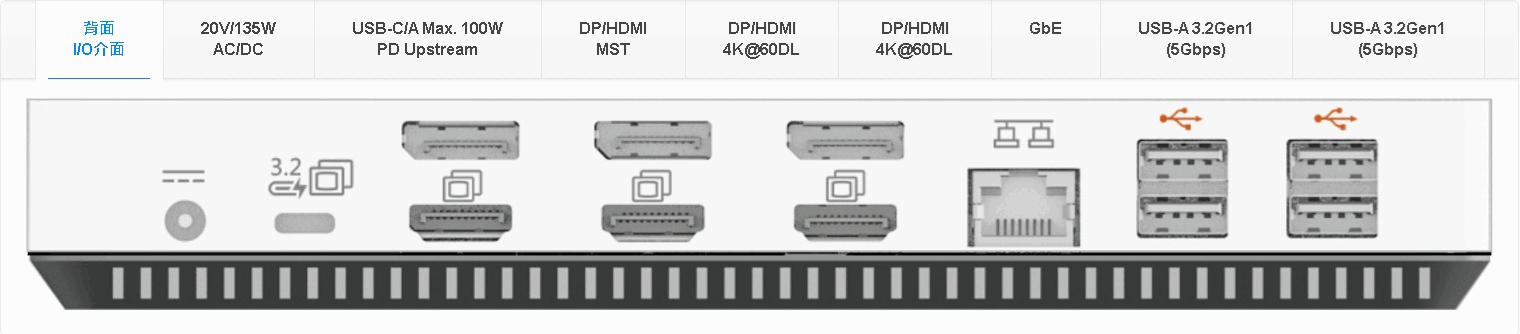

DK-13CD Rear I/O Interface.
Atemitech docking stations have undergone design verification for industrial and rugged equipment scenarios, providing stable multi-port connectivity and reliable signal transmission quality in environments such as manufacturing lines, warehousing and logistics, medical trolleys, and defense vehicle-carried systems. The product maintains system-level compatibility with battery modules, monitors, and complete machine solutions, making it part of an integrated solution that reduces additional investment in peripheral selection and integration testing for customers. Comprehensive technical documentation and safety compliance support assist procurement and regulatory teams in quickly completing supplier audits. Whether it's a single-station deployment or large-scale on-site implementation, comprehensive engineering support is provided from solution evaluation to mass production delivery.
Your Best Tech Partner.
Assess the appropriate docking station configuration for your devices and application scenarios.
