Mini LED Display
Atemitech has developed industry-leading industrial Mini LED touch displays. The DP-173X-UHD industrial touch display adopts Mini LED as its backlight source, delivering a peak brightness of 1,000 nits and an ultra-high contrast ratio of 100,000:1.
Equipped with 576-zone local dimming technology, the display achieves significantly enhanced image clarity with deeper blacks and brighter highlights, resulting in more vivid and dynamic color performance.
MiniLED displays, combining independent optical design and module integration capabilities.
The evolution of display technology is redefining benchmark requirements for image quality in industrial, medical, and outdoor equipment.
Traditional LED backlight modules have inherent limitations in high brightness uniformity, local dimming precision, and contrast performance, making it difficult to fully meet the practical usage needs of modern devices in complex lighting environments.
Atemitech's MiniLED backlight source is based on significantly reduced LED chip sizes, enabling higher density backlight zone configurations and providing finer local dimming control within the same display area.
Enhancing image contrast and black performance while maintaining uniform high brightness output.
Providing more competitive display solutions for devices that need to operate stably in bright environments or high-precision image interpretation scenarios.
Leading you into a new realm of vision.
The Atemitech DP-173X-UHD industrial touch display uses MiniLED as the backlight source, offering a peak brightness of 1000 nits, a contrast ratio of 100,000:1, and 576-zone dimming control technology for clearer image contrasts and more vibrant colors.
|
MiniLED. |
LED backlight strip. |
|
|---|---|---|
| Projection mode. |
Direct-lit. |
Edge-lit. |
| Backlight source. | 500-10,000 MiniLEDs | 24-80 SMT LEDs |
| Color saturation (NTSC) | 110% | 70-90% |
| Contrast | 100.000:1 | 1500:1 |
| Heat dissipation capability | Uniform distribution | Concentrated on the sides |
With a 178-degree wide viewing angle, you can effortlessly manage visuals from various angles without any blind spots.
The 120Hz screen refresh rate displays up to 120 frames per second, ensuring a smooth visual experience.

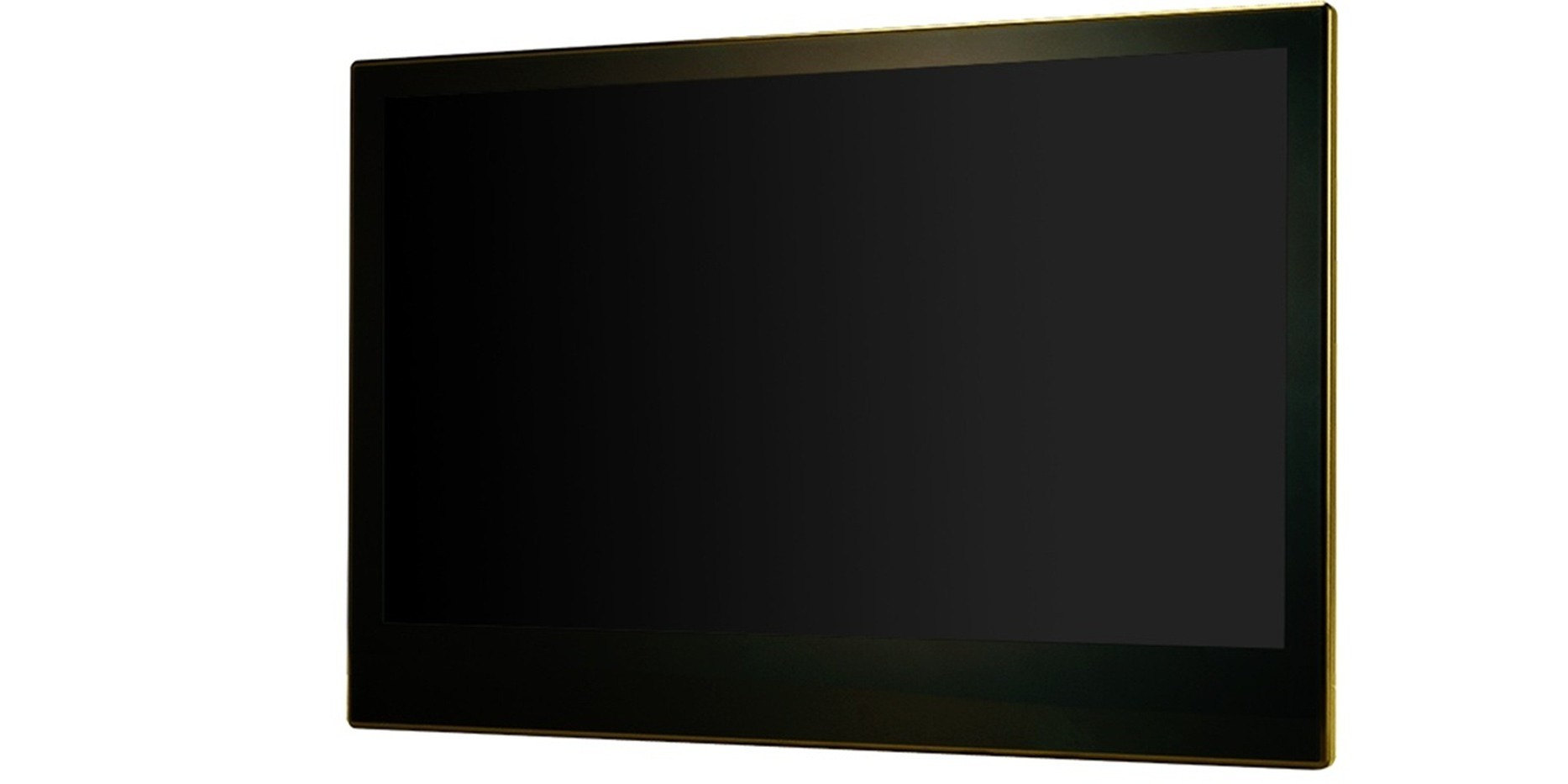

The DP-173X-UHD industrial touch display uses advanced modulation and optical bonding technology to achieve a one-piece black aesthetic effect where the screen blends seamlessly with the bezel in dark mode.
Supports dual mode operation with gloves and rain
The DP-173X-UHD industrial touch display supports glove and rain operation modes. The exclusive LumiBond® technology not only effectively prevents moisture intrusion but also enables the screen to withstand substantial impact, vibrations, and drops. It operates stably in a wide temperature range of -30°C to 85°C, efficiently handling various harsh operating environments.
|
Operable with gloves |
Rainproof operation protection |
>7H anti-scratch display |
 |
 |
 |
|
IP66-rated front panel design |
-30° ~ 85° wide temperature operation |
IK08 impact protection |
 |
 |
 |

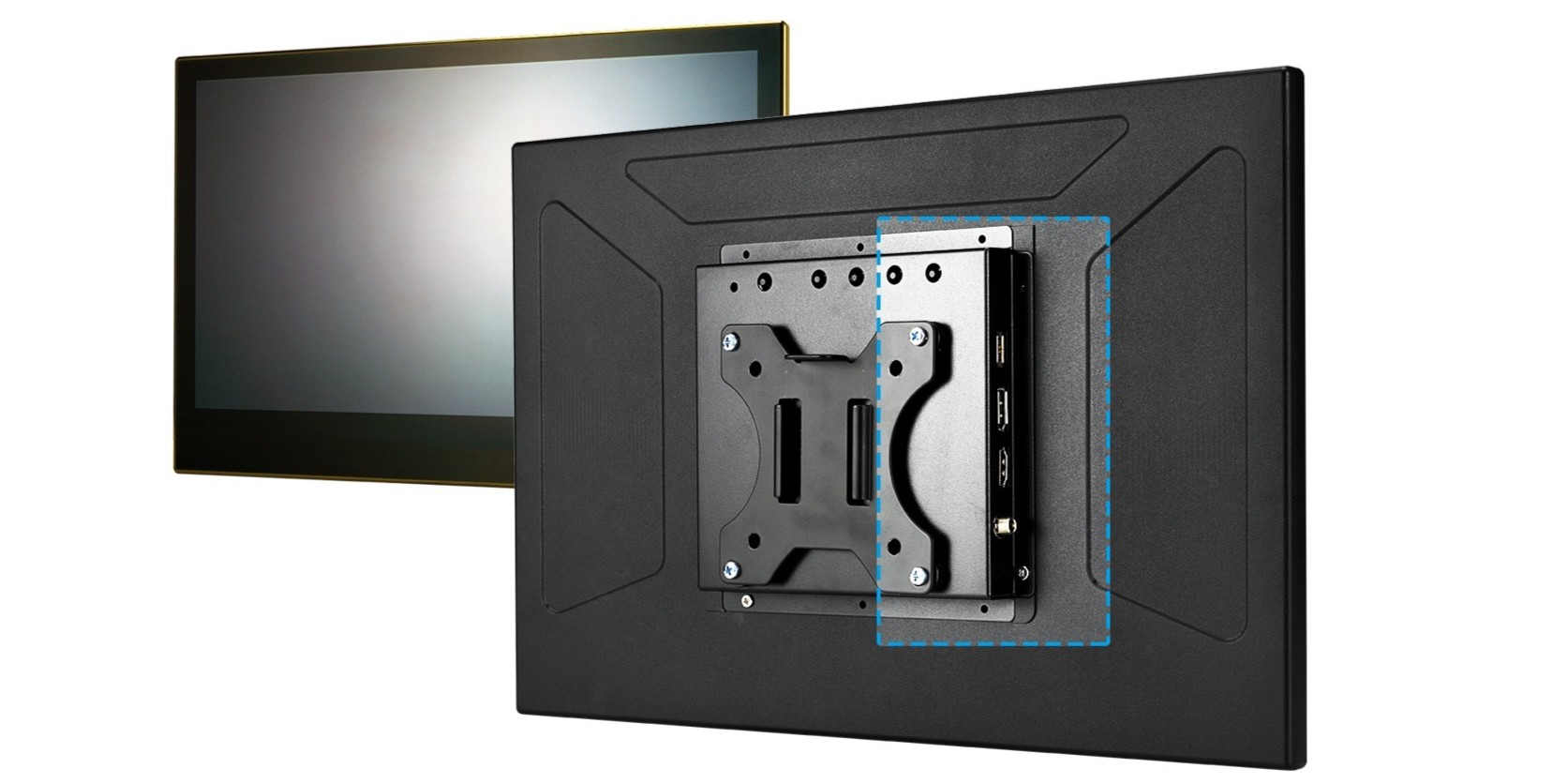

The standard I/O configuration provides common HDMI, VGA, and DP screen interfaces and a USB-B interface, with options for additional I/O configurations to meet networking capabilities or DVI-D digital signal interface needs.
|
HDMI
|
VGA
|
DisplayPort
|
Audio In
|
USB-A
|
USB-B
|
DVI-D
|
RS-232
|
RJ45
|
|
| Standard configuration | V | V | V | V | V | ||||
| Optional configuration one | V | V | V | V | V | V | |||
| Optional configuration two | V | V | V | V | V | V | V | V |
Flexible custom services and comprehensive solutions.
Atemitech's MiniLED touch displays can customize touch screens and control boards based on customer needs, offering projected capacitive touch technology from 17.3 to 43 inches.
With advanced optical bonding and touch technology, we provide various solutions for OEM and ODM customers, including anti-bacterial, saltwater-resistant, anti-fingerprint, anti-glare, high brightness, shatterproof, and electromagnetic interference resistance, helping users solve usage pain points.
|
Anti-bacterial |
Anti-glare |
Shatterproof |
 |
 |
 |
|
Anti-fingerprint |
High Brightness |
Saltwater Resistant |
 |
 |
 |
| Solar Radiation Function | Electromagnetic Interference | Ultrasonic Glue |
 |
 |
 |
The DP-173X-UHD industrial touch display provides exceptional durability and high-quality image performance, delivering a new visual experience for vertical market users while enhancing work efficiency. Its applications include medical institutions, gaming machines, factory human-machine interfaces or production line monitoring, and various kiosk applications (information service stations, self-service systems, multifunctional digital signage).
Helping You Easily Meet Various Tough Operational Challenges
